| Brand Name : | CNBTZC or OEM |
| Model Number : | 71902 CDGC/P4A |
| Certification : | IATF16949:2016 |
| Price : | Please contact us,thanks |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 500000pcs per month |
| Delivery Time : | 2-4 weeks |

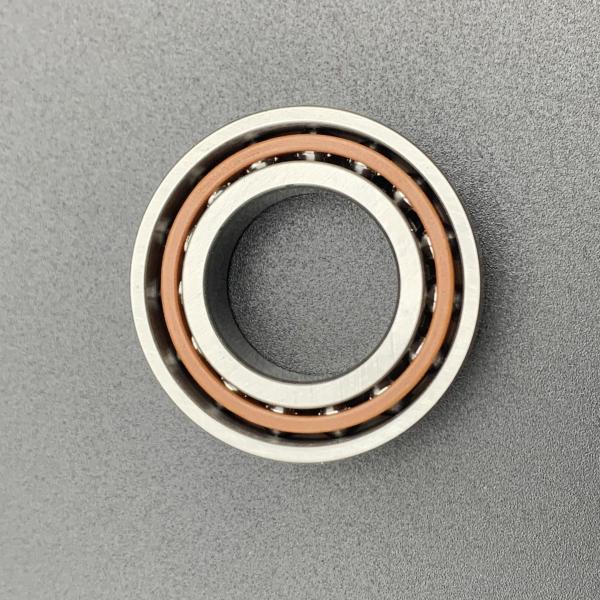

71902 CDGC/P4A 15*28*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capacity, universally matchable single row angular contact ball bearing
The 71902 CDGC/P4A bearing,bore diameter is 15 mm, outside diameter is 28 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71902 CDGC/P4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 15 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 28 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 7 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.015 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings | |
| Preload | M/Moderate/Class C | |
| Load and Speed | Dynamic Radial Load | 3970 N |
| Static Radial Load | 1900 N | |
| Reference Speed For Grease (r/min) | 60,000 rpm | |
| Limiting Speed For Oil(r/min) | 90,000 rpm | |
What's the Performance Features of 71902 CDGC/P4A Bearing?
The 71902 CDGC/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71902 CDGC/P4A Bearing?
The 71902 CDGC/P4A bearing is a high-precision angular contact ball bearing designed for high load capacities, making it ideal for a wide range of industrial applications. It supports critical components in smelting and dairy equipment, enhances the accuracy and efficiency of welding machines, drives various parts in leather processing and rubber extrusion machinery, improves performance in compressors and veterinary instruments, ensures quality in plastic molding, and boosts operational efficiency in pumps, agricultural machinery, desulfurization systems, and cooling towers. Its robust design and precision make it essential for maintaining stable and efficient operations across diverse and demanding industrial environments.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
|
|
