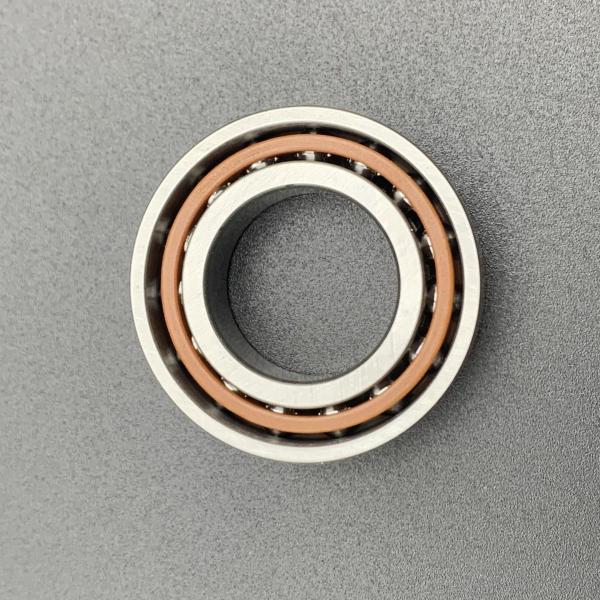

    71800 CD/HCP4 Hybrid High Speed Ceramic Ball Bearings Single Row 7800

    Ask Lasest Price
    Brand Name : CNBTZC or OEM
    Model Number : 71800 CD/HCP4
    Certification : IATF16949:2016
    Price : Please contact us,thanks
    Payment Terms : L/C,T/T
    Supply Ability : 500000pcs per month
    Delivery Time : 2-3 weeks
    • Product Details
    • Company Profile

    71800 CD/HCP4 Hybrid High Speed Ceramic Ball Bearings Single Row 7800

    71800 CD/HCP4 Precision Hybrid Ceramic Balls Single Row Angular Contact Ball Bearing


    71800 CD/HCP4 10*19*5 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed


    The 71800 CD/HCP4 bearing,bore diameter is 10 mm, outside diameter is 19mm,width is 5 mm,featuring precise dimensions, high static load capacity, P4 precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.


    Part Number71800 CD/HCP4
    Bearing TypeAngular Contact
    Measurement UnitMetric
    DimensionsInner Bore Diameter (d)10 mm
    Inner Bore Diameter Tolerance-0.004mm to 0
    Outer Bore Diameter (D)19 mm
    Outer Bore Diameter Tolerance-0.005mm to 0
    Width (B)5 mm
    Width Tolerance-0.2mm to 0
    SpecificationsContact Angle15° (25°,40° Available)
    MaterialHybrid (Chrome Steel Rings, Ceramic Balls)
    Cage MaterialPhenolic
    Number of Rows1 Single Row
    Seal TypeOpen
    Temperature Range-30°C to 150°C
    LubricationGrease or Oil
    Tolerance ClassP4 (ABEC-7)
    Weight0.005 kg
    Matched ArrangementNo
    Universal Matching BearingNo
    PreloadNot applicable
    Load and SpeedDynamic Radial Load1900 N
    Static Radial Load980 N
    Reference Speed For Grease (r/min)95,000 rpm
    Limiting Speed For Oil(r/min)150,000 rpm

    71800 CD/HCP4 Hybrid High Speed Ceramic Ball Bearings Single Row 780071800 CD/HCP4 Hybrid High Speed Ceramic Ball Bearings Single Row 7800


    What's the Performance Features of 71800 CD/HCP4 Bearing?


    The 71800 CD/HCP4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.


    What's the Applications of the 71800 CD/HCP4 Bearing?


    The 71800 CD/HCP4 bearing, a precision angular contact ball bearing, is indispensable across various applications including internal combustion engines, ensuring stable operation under high temperatures and heavy loads; supporting front wheels and steering systems in automobiles for accurate positioning and stability; playing a critical role in automotive differentials and railway vehicle axles for reliable power distribution and smooth operation; handling significant pressures in industrial extruders; and providing essential support in earthmoving machinery. Even in toy manufacturing, it ensures safe and proper function, highlighting its versatility and importance in achieving stability, efficiency, and precision across multiple industries.


    CERTIFICATERoHS & REACH, IATF16949:2016
    FeatureHigh Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
    ServiceOEM&ODM Customized Services
    SamplesPlease Contact Us
    ServiceOnline Support,Professional Service
    SizeStandard,For custom sizes ,please contact us
    Factory ManufacturerYes
