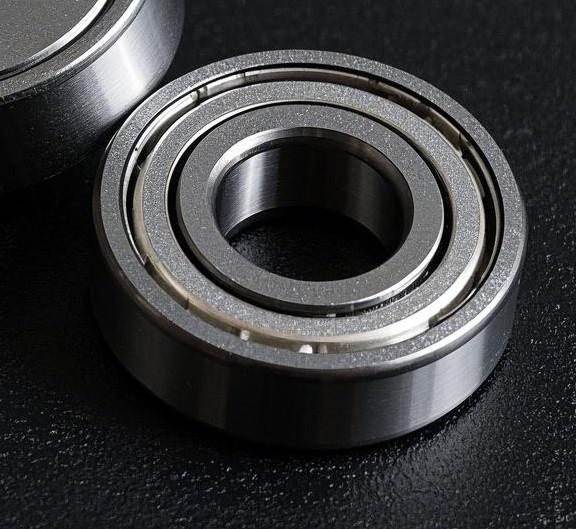

16002 ZZ C0 Deep Groove Ball Bearings Single Row 15*32*8mm Linear actuators Push Rod Motor
The 16002 ZZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | |||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | ||
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference | |
| 16002 ZZ | 15 | 32 | 8 | 0.3 | 5600 | 2830 | 15000 | / | 0.027 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -50°C ~ +150°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6 |
| Radial Clearance | C0 |
Requirements for Bearings in Linear Actuators (Push Rod Motor).
Linear actuators typically use two sets of bearings with the following requirements:
1.Excellent Dust Protection:
The bearings must effectively prevent external dust from entering the internal components, ensuring long-term performance and reliability.
2.Wide Operating Temperature Range:
The bearings should function reliably within a temperature range of -50°C to 150°C, ensuring they can handle both extremely cold and hot environments.
3.Low Noise Operation:
The bearings must operate quietly, minimizing noise levels during operation, which is crucial for maintaining a pleasant working environment.
4.Service Life:
Designed for longevity, these bearings should have a long service life with minimal maintenance requirements, enhancing overall system reliability and reducing downtime.
What's the Performance Features of 16002 ZZ Bearings in Linear Actuators(Push Rod Motor)?
The 16002 ZZ bearing is well-suited for linear actuators (push rod motors), offering excellent dust protection with metal shields that prevent contamination, ensuring long-term performance. It operates reliably across a wide temperature range of -50°C to 150°C, making it adaptable to extreme environments. The bearing provides low noise operation, crucial for maintaining a quiet working environment, and is designed for longevity with minimal maintenance, enhancing system reliability and reducing downtime. Its robust features make it an ideal choice for the demanding conditions of linear actuator applications.
What's the Applications of the 16002 ZZ Bearing?
The 16002 ZZ bearing, featuring metal shields on both sides, is widely used in applications requiring compact design, low noise, and protection against contaminants. It finds use in home appliances like blenders and mixers, consumer electronics such as DVD players and hard disk drives, office equipment including printers and scanners, small power tools, automotive components like window regulators and electric mirrors, medical devices, and sports equipment. Its metal shields ensure excellent dust and contaminant protection while retaining lubricant, offering reliable performance with minimal maintenance in a variety of small-scale mechanical systems.
If you have more specific questions about the 16002 ZZ bearing or need additional information, feel free to ask!
|
|
