| Brand Name : | CNBTZC or OEM |
| Model Number : | 6206 2RS |
| Certification : | IATF16949:2016 |
| Price : | Please contact us |
| Supply Ability : | 500000 pcs per month |
| Delivery Time : | 30 days |

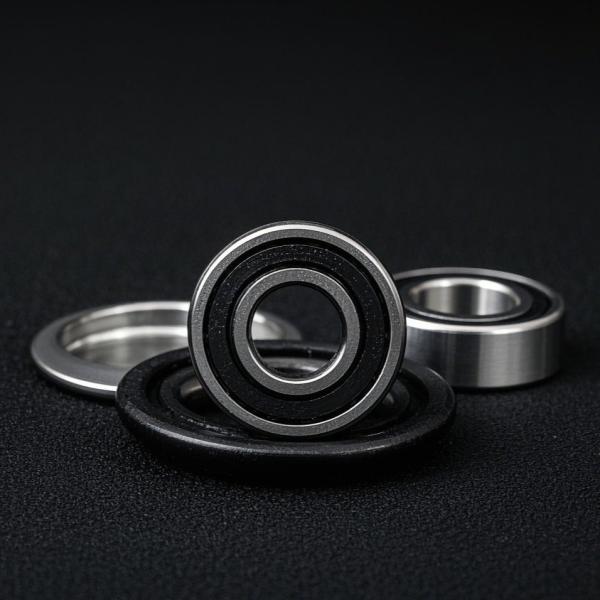

6206 2RS C0 Deep Groove Ball Bearings Single Row 30*62*16mm Planetary Gearboxes
The 6206 2RS bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | |||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | ||
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference | |
| 6206 2RS | 30 | 62 | 16 | 1 | 19500 | 11300 | 7500 | / | 0.199 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -30°C ~ +150°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6 |
| Radial Clearance | C0 |
Requirements for Bearings in Planetary Gearboxes.
Planetary gearboxes generally require three sets of bearings to support their high-speed operation, often reaching speeds above 3,000 revolutions per minute (RPM). The key performance features of these bearings include:
No Oil Leakage:
Designed to prevent oil leakage even during high-speed operation, ensuring reliable lubrication and extending the service life of the gearbox.
Dust Protection:
Provide excellent sealing to block external dust and contaminants from entering the internal components, maintaining optimal performance and reducing wear.
Low Noise Operation:
Operate quietly with minimal noise and vibration, contributing to smooth and efficient gearbox operation.
What's the Performance Features of 6206 2RS Bearings in Planetary Gearboxes?
The 6206 2RS bearing, with its double rubber seals, is well-suited for planetary gearboxes, providing reliable performance at high speeds exceeding 3,000 RPM. It effectively prevents oil leakage, ensures dust protection to maintain internal cleanliness, and operates with low noise and minimal vibration, contributing to the smooth and efficient operation of the gearbox. Its robust design enhances durability and extends service life, making it an ideal choice for the demanding conditions of planetary gearboxes.
What's the Applications of the 6206 2RS Bearing?
The 6206-2RS bearing,It is commonly used in both industrial and household electric motors, found in automotive components such as car transmissions, clutch systems, and wheel hubs, and utilized in various industrial machinery like conveyors, pumps, and compressors. Additionally, it ensures smooth and reliable operation in home appliances such as washers and dryers, making it a versatile choice across multiple industries.
If you need more specific information or have other questions, feel free to ask!
|
|
