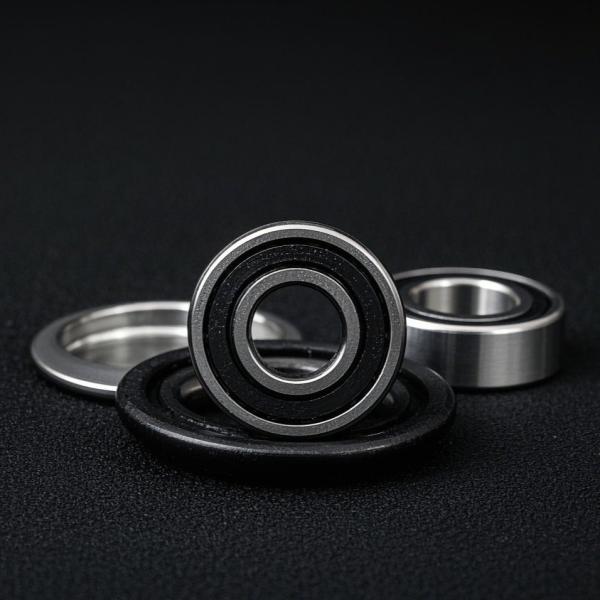

6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability

Beining Intelligent Technology (Zhejiang) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability from wholesalers

    Buy cheap 6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability from wholesalers
    • Buy cheap 6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability from wholesalers

    6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability

    Ask Lasest Price
    Brand Name : CNBTZC or OEM
    Model Number : 6205 2RS
    Certification : IATF16949:2016
    Price : Please contact us
    Supply Ability : 1 million pcs per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability

    6205 2RS C0 Deep Groove Ball Bearings Single Row 25*52*15mm Planetary Gearboxes


    The 6205 2RSbearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:

    Bearing NumberDimensions(mm)Basic Load Rating(N)Limiting Speed(rpm)Weight(Kg)
    Inner DiameterOuter DiameterWidthChamferDynamicStaticGreaseOil
    dDBr(min)CrCorNon-contactNon-contactReference
    6205 2RS25521511400078509000/0.128

    Ring MaterialChrome Steel
    Roller MaterialChrome Steel
    CageSteel
    LubricationGrease
    Measurement UnitMetric
    Seal TypeZZ(2RS,2RZ, open types are available)
    Temperature Range-30°C ~ +150°C
    CERTIFICATERoHS, IATF16949:2016
    FeatureLong Life,Low Noise,High Speed
    ServiceOEM&ODM Customized Services
    SamplesPlease Contact Us
    ServiceOnline Support,Professional Service
    SizeStandard,For custom sizes ,please contact us
    Factory ManufacturerYes
    SizeStandard,For custom sizes ,please contact us
    Bearing TypeBall
    For Load DirectionRadial
    ConstructionSingle Row
    Tolerance ClassP6
    Radial ClearanceC0

    Requirements for Bearings in Planetary Gearboxes.

    Planetary gearboxes generally require three sets of bearings to support their high-speed operation, often reaching speeds above 3,000 revolutions per minute (RPM). The key performance features of these bearings include:

    No Oil Leakage:

    Designed to prevent oil leakage even during high-speed operation, ensuring reliable lubrication and extending the service life of the gearbox.

    Dust Protection:

    Provide excellent sealing to block external dust and contaminants from entering the internal components, maintaining optimal performance and reducing wear.

    Low Noise Operation:

    Operate quietly with minimal noise and vibration, contributing to smooth and efficient gearbox operation.

    6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability


    6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability

    6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability6205 2RS C0 Planetary Gear Bearings 25*52*15mm Simplicity Reliability

    What's the Performance Features of 6205 2RS Bearings in Planetary Gearboxes?


    The 6205 2RS bearing, with its double rubber seals, is well-suited for planetary gearboxes, providing reliable performance at high speeds exceeding 3,000 RPM. It effectively prevents oil leakage, ensures dust protection to maintain internal cleanliness, and operates with low noise and minimal vibration, contributing to the smooth and efficient operation of the gearbox. Its robust design enhances durability and extends service life, making it an ideal choice for the demanding conditions of planetary gearboxes.


    What's the Applications of the 6205 2RS Bearing?


    The 6205 2RS bearing, a deep groove ball bearing with robust rubber seals, is extensively utilized in industrial machinery for its reliability and performance in harsh conditions, including precision robotics and complex material handling systems. In the railway industry, it enhances the reliability and efficiency of locomotives and rail vehicles. This versatile bearing also finds application in a wide range of equipment such as vulcanizing chambers, injection molding machines, gantry cranes, magnetic separation devices, vertical pumps, brazing machines, waste processing equipment, freezers, shoe repair machines, sampling machines, drilling and mining equipment, multi-functional machine tools, bakery equipment, loading and compaction machinery, military applications, rubber joint machines, textile auxiliary equipment, machine tool lighting, hydraulic chucks, and more. Additionally, it is used in specialized areas like automotive and agricultural steering systems, excelling in low-speed operations requiring high sealing performance. Overall, the 6205 2RS bearing’s superior performance and reliability make it indispensable across multiple industries.

    If you need more specific information or have other questions, feel free to ask!
