| Brand Name : | CNBTZC or OEM |
| Model Number : | 6203 ZZ / 6203 2Z |
| Certification : | IATF16949:2016 |
| Price : | Please contact us |
| Supply Ability : | 1 million pcs per month |
| Delivery Time : | 30 days |

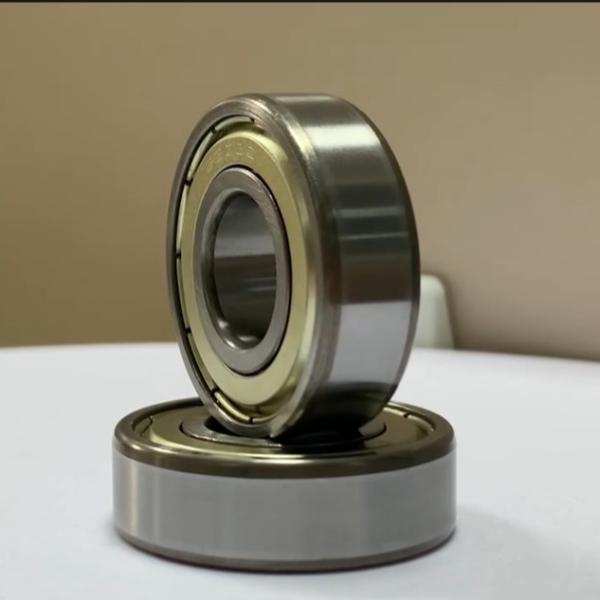

6203 ZZ C3 Deep Groove Ball Bearings Single Row 17*40*12mm Washing Machine Dryer
6203 ZZ C3 Deep Groove Ball Bearings Single Row 17*40*12mm Washing Machine Dryer
The 6203 ZZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | |||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | ||
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference | |
| 6203 ZZ | 17 | 40 | 12 | 0.6 | 9550 | 4800 | 18000 | / | 0.065 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -30°C ~ +150°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6,P0 |
| Radial Clearance | C3 |
Requirements for Bearings in Laundry Machines(Washing Machines and Dryers).
Laundry machines (washing machines and dryers) typically use two sets of bearings, with the following requirements:
Low Noise Operation:
Bearings must operate without unusual noises and maintain low decibel levels to ensure quiet operation.
Long Service Life:
Drum washing machine bearings require a very high lifespan, with a minimum of 2,500 simulated spin cycles under load and centrifugal force.
Speed Requirements:
Agitator-type washing machines: The motor speed is generally around 1,400 RPM.
Drum washing machines with BLDC motors:
No-load speed: Typically reaches 16,000 RPM.
Load speed: Around 12,000 RPM.
Variable Frequency Operation:
For models with variable frequency drives, bearings must have high durability and resistance to micro-wear to meet the stringent lifespan requirements.
What's the Performance Features of 6203 ZZ Bearings in Washing Machine / Dryer?
The 6203 ZZ bearing, featuring metal shields on both sides, is ideally suited for washing machines and dryers, offering low noise operation essential for maintaining quiet performance. Designed to endure rigorous conditions, it supports a long service life, withstanding at least 2,500 simulated spin cycles under load and centrifugal force. Capable of handling high speeds—up to 16,000 RPM no-load and around 12,000 RPM under load—it is particularly fitting for drum washing machines with BLDC motors. Additionally, its durability under variable frequency operation ensures resistance to micro-wear, meeting stringent lifespan requirements. This makes the 6203 ZZ bearing a reliable choice for the demanding environments of modern laundry machines.
What's the Applications of the 6203 ZZ Bearing?
The 6203 ZZ bearing,is widely utilized across diverse industries. It supports a broad range of applications including industrial machinery like gearboxes and elevators, mechanical equipment such as plastic pelletizing machines and impeller pumps, transportation vehicles from cars to agricultural machinery, electronic devices requiring precision like computer hard drives and printers, home appliances such as washing machines and refrigerators, medical devices including dental drills and surgical instruments, aerospace components, construction machinery, food processing equipment, renewable energy systems, office equipment, sports and fitness machines, and automotive manufacturing tools. Its simplicity, reliability, and versatility make it an indispensable component in ensuring smooth and efficient operation across these sectors.
If you have more specific questions about the 6203ZZ bearing or need additional information, feel free to ask!
|
|
