6206 2RS C0 Deep Groove Ball Bearings Single Row 30*62*16mm Worm
Gear Reducers
6206 2RS C0 Deep Groove Ball Bearings Single Row 30*62*16mm Worm
Gear Reducers

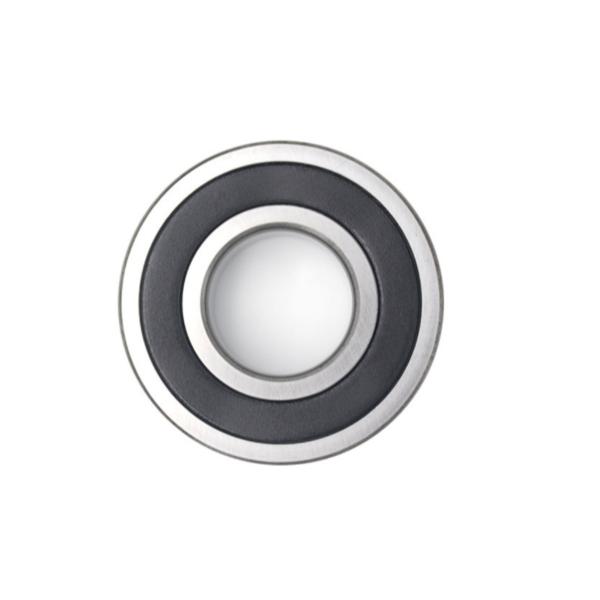

The 6206 2RS bearing is a widely used deep groove ball bearing, known for its
simplicity, reliability, and versatility. Here’s a detailed
introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) |
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil |
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference |
| 6206 2RS | 30 | 62 | 16 | 1 | 19500 | 11300 | 7500 | / | 0.199 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -30°C ~ +150°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6, |
| Radial Clearance | C0 |
Requirements for Bearings in Worm Gear Reducers.
Worm gear reducers typically require 4 sets of bearings, with the
following specifications:
- Low Speed: The bearings must be capable of operating at low speeds.
- Load Capacity: They should be able to withstand specified loads.
- Long Service Life: The bearings need to ensure long-lasting performance.
What's the Performance Features of 6206 2RS Bearings in Worm Gear Reducers?
The 6206 2RS bearing provides reliable performance in worm gear
reducers, designed to operate effectively at low speeds while
supporting specified loads. Its double rubber seals ensure
effective protection against contaminants and retain lubricant,
contributing to long-lasting performance and minimal maintenance.
Built for durability, it offers a long service life, making it
well-suited for the demanding conditions of worm gear reducer
applications. The robust construction and load-bearing capability
of the 6206 2RS bearing ensure consistent and dependable operation
in these mechanical systems.
What's the Applications of the 6206 2RS Bearing?
The 6206 2RS bearing is commonly found in home appliances like washing machines and
dishwashers, consumer electronics such as air conditioners and
vacuum cleaners, industrial equipment including conveyor systems
and pumps, and automotive components like electric motors and
blower fans. Its robust design ensures quiet and efficient
performance, making it suitable for a variety of industries and
devices where durability and reliability are crucial.
If you need further details or have other questions, feel free to
ask!
