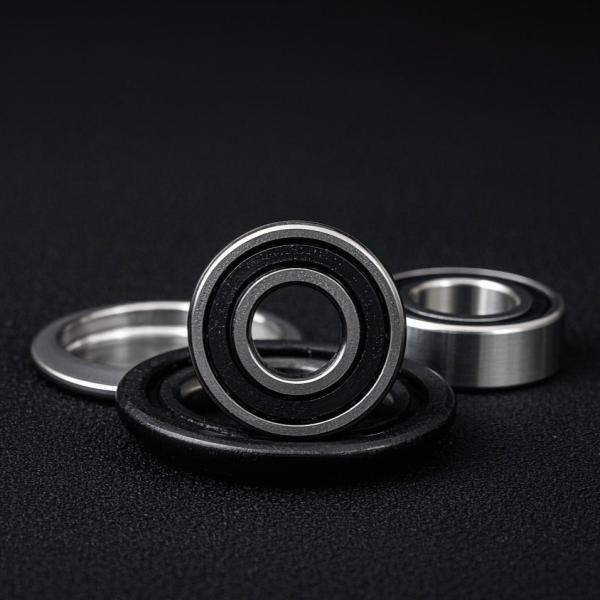

6202 2RZ C0 Deep Groove Ball Bearings Single Row Sealed 15*35*11mm
Vortex Pumps
The 6202 2RZ bearing is a widely used deep groove ball bearing, known for its
simplicity, reliability, and versatility. Here’s a detailed
introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) |
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil |
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference |
| 6202 2RZ | 15 | 35 | 11 | 0.6 | 7600 | 3750 | 14000 | / | 0.045 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -30°C ~ +150°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6,P5 |
| Radial Clearance | C0 |
Requirements for Bearings in Vortex Pumps.
Vortex pumps typically require 2 sets of bearings, with the
following specifications:
Low Noise: The bearings must ensure quiet operation.
Speed: They should be capable of operating at speeds ranging from 2850
to 3500 RPM.
Temperature Range: They need to function reliably within an operating temperature
range of -20°C to 120°C.
Low Starting Torque: The bearings should require minimal torque to start, ensuring
easy startup.
What's the Performance Features of 6202 2RZ Bearings in Vortex Pumps?
The 6202 2RZ bearing is well-suited for vortex pumps, offering
quiet operation to ensure a low-noise environment. It supports
high-speed performance, operating efficiently at speeds from 2850
to 3500 RPM. Designed for reliability, it functions effectively
within a wide temperature range of -20°C to 120°C. The bearing also
features low starting torque, ensuring easy startup with minimal
effort. Its double rubber seals prevent water ingress and retain
lubricant, enhancing durability and reducing maintenance needs.
Overall, the 6202 2RZ bearing meets the specific requirements of
vortex pumps, providing smooth, reliable, and efficient operation.
What's the Applications of the 6202 2RZ Bearing?
The 6202 2RZ bearing,widely applied in the automotive industry for components like rear
wheels and transmissions, it also supports general-purpose motors
and home appliances in the electrical sector. Its precision and
reliability make it ideal for instruments and meters, while its
durability and load-carrying capacity are crucial in internal
combustion engines. Found in construction machinery, railway
vehicles, material handling equipment, agricultural machinery, and
various industrial machines, this bearing ensures stable
performance under heavy loads and harsh conditions, extending
service life and maintaining efficiency across multiple sectors.
If you need more specific information or have further questions
about the 6202 2RZ bearing, feel free to ask!
