| Brand Name : | CNBTZC or OEM |
| Model Number : | 6700 |
| Certification : | IATF16949:2016 |
| Price : | Please contact us,thanks |
| Payment Terms : | L/C,T/T |
| Supply Ability : | 500000pcs per month |
| Delivery Time : | 2-4 weeks |

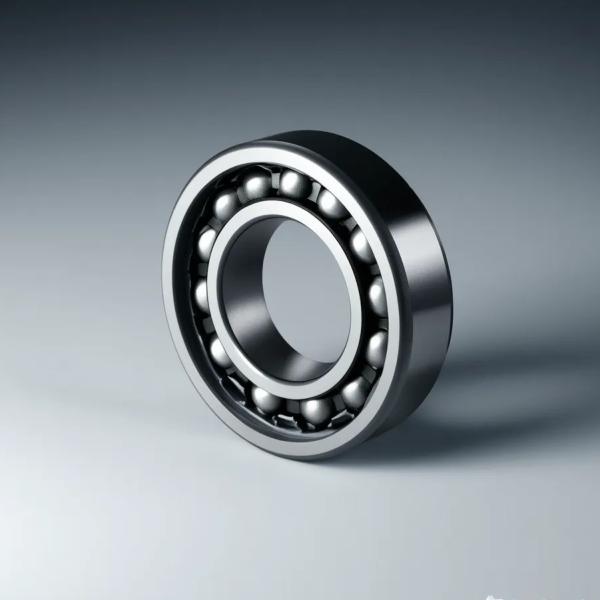

6700 Deep Groove Ball Bearings10mm X 15mm X 3mm Thin Section Robot Bearings 61700
The 6700 deep groove ball bearing, with dimensions of 10 mm inner diameter × 15mm outer diameter × 3mm width, is renowned for its compact size, high-speed capability, and low noise characteristics.
Bearing Number | Boundary Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Reference(kg) Weight | ||||||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | |||||
| d | D | B | B1 | r(min) | Cr | Cor | Non-contact | Wt ≈ | ||||
| 61700 | ZZ | 10 | 15 | 3 | 4 | 0.1 | 800 | 390 | 34000 | 40000 | 0.00190 | |
| 61701 | ZZ | 2RS | 12 | 18 | 4 | 4 | 0.2 | 910 | 530 | 32000 | 38000 | 0.00310 |
| 61702 | ZZ | 2RS | 15 | 21 | 4 | 4 | 0.2 | 850 | 490 | 28000 | 32000 | 0.00360 |
| 61703 | ZZ | 2RS | 17 | 23 | 4 | 4 | 0.2 | 960 | 610 | 26000 | 30000 | 0.00400 |
| 61704 | ZZ | 2RS | 20 | 27 | 4 | 4 | 0.2 | 1030 | 720 | 23000 | 28000 | 0.00590 |
| 61705 | ZZ | 2RS | 25 | 32 | 4 | 4 | 0.2 | 1090 | 830 | 19000 | 23000 | 0.00700 |
| 61706 | ZZ | 2RS | 30 | 37 | 4 | 4 | 0.2 | 1170 | 980 | 16000 | 19000 | 0.00830 |
| 61707 | ZZ | 2RS | 35 | 44 | 5 | 5 | 0.3 | 1850 | 1630 | 14000 | 17000 | 0.01500 |
| 61708 | ZZ | 2RS | 40 | 50 | 6 | 6 | 0.3 | 2519 | 2234 | 12000 | 15000 | 0.02300 |
| 61709 | ZZ | 2RS | 45 | 55 | 6 | 6 | 0.3 | 2577 | 2401 | 9000 | 13000 | 0.02500 |
| 61710 | ZZ | 2RS | 50 | 62 | 6 | 6 | 0.3 | 2666 | 2636 | 7000 | 10000 | 0.03400 |
| 61711 | ZZ | 2RS | 55 | 68 | 7 | 7 | 0.3 | 2880 | 3070 | 5000 | 8000 | 0.05500 |
6700 Ball Bearings 10X15X3mm Specifications & Dimensions
| Universal | 6700 |
| Type | Deep Groove Ball |
| Inner/Outer Ring/ Ball Material | Chrome Steel |
| Cage Material | Steel/Nylon |
| CageType | Punching |
| Precision | P0,P6 |
| Inner Dimension d(Ø)(mm) | 10 |
| Outer Dimension D(Ø)(mm) | 15 |
| Width B (or T)(mm) | 3 |
| Lubrication | Grease |
| Load Direction | Radial |
| Specifications/Environment | Standard |
| Number of Raceway Ring Rows | Single Track |
| Size Standards | Metric Series |
The 6700 deep groove ball bearing is widely used across various specialized fields due to its compact size and high precision. Application areas include:
1. Industrial Manufacturing and Automation Equipment
Packaging Equipment: Used in devices such as sealing machines and labeling machines.
Printing Machinery: Applied in roller transmission components.
Food and Pharmaceutical Equipment: Undertakes low-load rotational tasks in equipment like mixers and pill-making machines.
2. Automotive and Transportation
Automotive Components: Suitable for parts such as steering knuckles and gearboxes.
Small Vehicles: Used in precision transmission systems of small vehicles like motorcycles and power tools.
3. Precision Instruments and Small Machinery
Household Appliances: Found in devices like fans and soy milk makers.
Toys, Smart Locks, Robots: Utilized in efficient transmission components of micro-devices such as toys, smart locks, and robots.
4. Special Industrial Scenarios
Compact Design Requirements: Plays a role in scenarios requiring compact designs, such as deep-hole drilling machines and sanding machines.
|
|
