17mm Shaft 61703 17x23x4mm Open Thin Section Robot Bearing 6703zz

Ask Lasest Price
Brand Name :	CNBTZC or OEM
Model Number :	6703
Certification :	IATF16949:2016
Price :	Please contact us,thanks
Payment Terms :	L/C,T/T
Supply Ability :	500000pcs per month
Delivery Time :	2-4 weeks

Add to Cart

Product Details
Company Profile

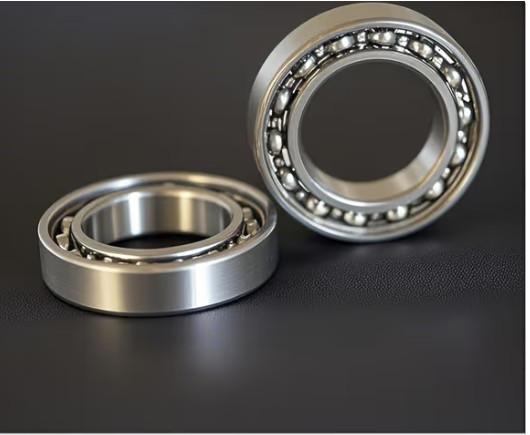

17mm Shaft 61703 17x23x4mm Open Thin Section Robot Bearing 6703zz

61703 Deep Groove Ball Bearings17mm X 23mm X 4mm Thin Section Robot Bearings 6703

The 61703 deep groove ball bearing, with dimensions of 17 mm inner diameter × 23mm outer diameter × 4mm width, is renowned for its compact size, high-speed capability, and low noise characteristics.

The 61703 is a small deep groove ball bearing, designed for lightweight applications with low to medium loads and speeds. It is known for its compact size, low noise, and smooth operation.

Common Uses:

Small Motors: Cooling fans, toy motors, and low-power DC motors.
Home Appliances: Washing machine pumps, blenders, and small kitchen appliances.
Automotive Accessories: Window regulators, seat adjusters, and dashboard components.
Office Equipment: Printers, scanners, and paper feeders.
Light Machinery: Conveyor rollers, packaging machines, and DIY power tools.

6703 Ball Bearings 17X23X4mm Specifications & Dimensions

Universal	6703
Type	Deep Groove Ball
Inner/Outer Ring/ Ball Material	Chrome Steel
Cage Material	Steel
CageType	Punching
Precision	P0,P6
Inner Dimension d(Ø)(mm)	17
Outer Dimension D(Ø)(mm)	23
Width B (or T)(mm)	4
Lubrication	Grease,oil
Load Direction	Radial
Specifications/Environment	Standard
Number of Raceway Ring Rows	Single Track
Size Standards	Metric Series

17mm Shaft 61703 17x23x4mm Open Thin Section Robot Bearing 6703zz

Bearing Number			Boundary Dimensions(mm)					Basic Load Rating(N)		Limiting Speed(rpm)		Reference(kg) Weight
			Inner Diameter	Outer Diameter	Width		Chamfer	Dynamic	Static	Grease	Oil	Reference(kg) Weight
			d	D	B	B1	r(min)	Cr	Cor	Non-contact		Wt ≈
617/3	ZZ		3	6	2	2.5	0.1	242	94	60000	71000	0.00020
617/4	ZZ		4	7	2	2.5	0.1	222	88	54000	63000	0.00028
617/5	ZZ		5	8	2	2.5	0.1	217	91	49000	57000	0.00032
617/6	ZZ		6	10	2.5	3	0.1	465	196	43000	51000	0.00065
617/7	ZZ		7	11	2.5	3	0.1	555	269	40000	47000	0.00067
617/8	ZZ		8	12	2.5	3.5	0.1	515	252	38000	45000	0.00075
617/9	ZZ		9	14	3	4.5	0.1	920	465	36000	42000	0.00140
61700	ZZ		10	15	3	4	0.1	800	390	34000	40000	0.00190
61701	ZZ	2RS	12	18	4	4	0.2	910	530	32000	38000	0.00310
61702	ZZ	2RS	15	21	4	4	0.2	850	490	28000	32000	0.00360
61703	ZZ	2RS	17	23	4	4	0.2	960	610	26000	30000	0.00400
61704	ZZ	2RS	20	27	4	4	0.2	1030	720	23000	28000	0.00590
61705	ZZ	2RS	25	32	4	4	0.2	1090	830	19000	23000	0.00700
61706	ZZ	2RS	30	37	4	4	0.2	1170	980	16000	19000	0.00830
61707	ZZ	2RS	35	44	5	5	0.3	1850	1630	14000	17000	0.01500
61708	ZZ	2RS	40	50	6	6	0.3	2519	2234	12000	15000	0.02300
61709	ZZ	2RS	45	55	6	6	0.3	2577	2401	9000	13000	0.02500
61710	ZZ	2RS	50	62	6	6	0.3	2666	2636	7000	10000	0.03400
61711	ZZ	2RS	55	68	7	7	0.3	2880	3070	5000	8000	0.05500
